CARGRAPHICExhaust for 718 GT4 / Spyder / GTS 4.0

If your 718 GT4 / Spyder / GTS sound doesn't do it for you we offer the Sport Exhaust from Cargraphic as our go to solution.

Product description:

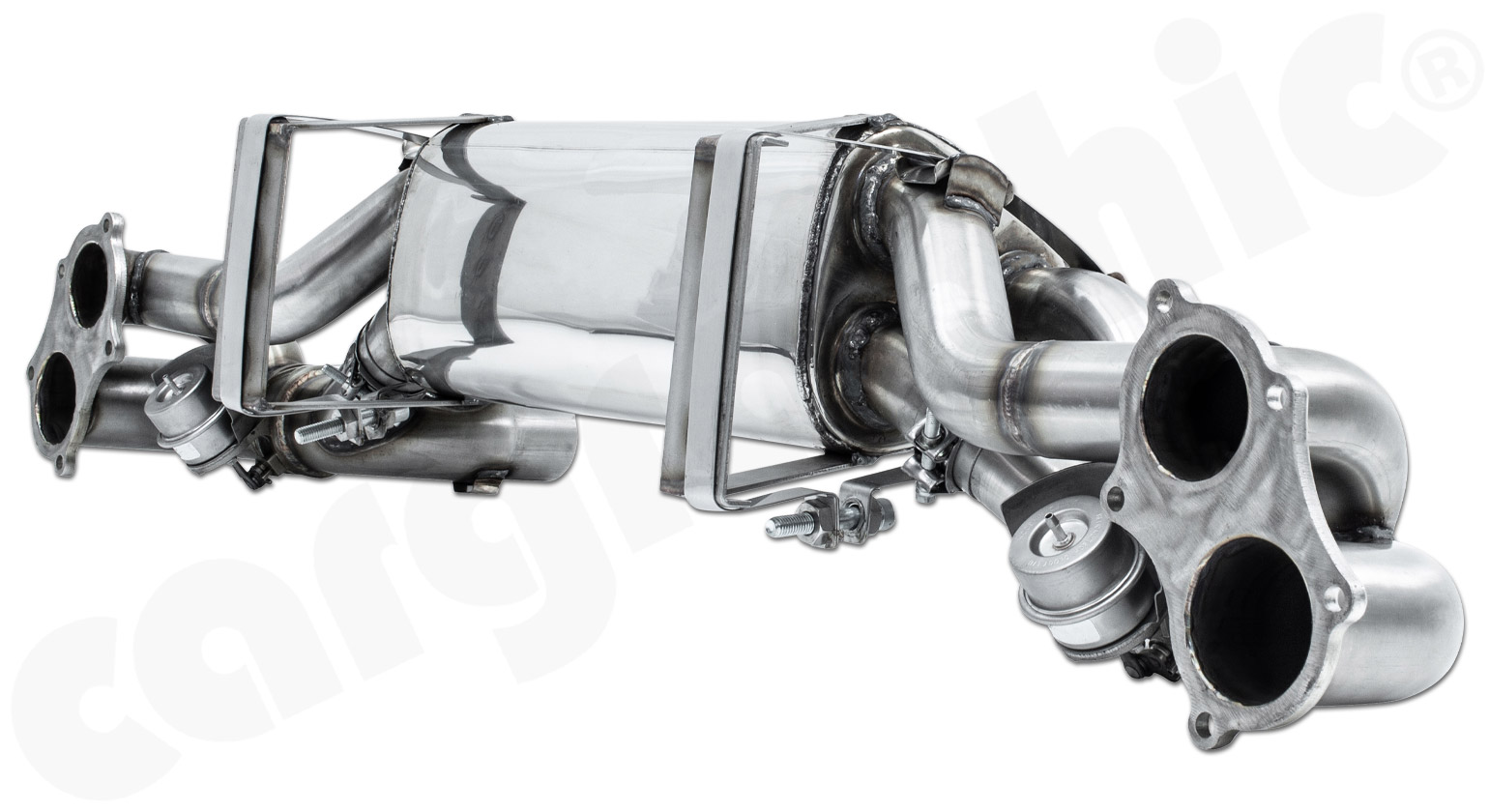

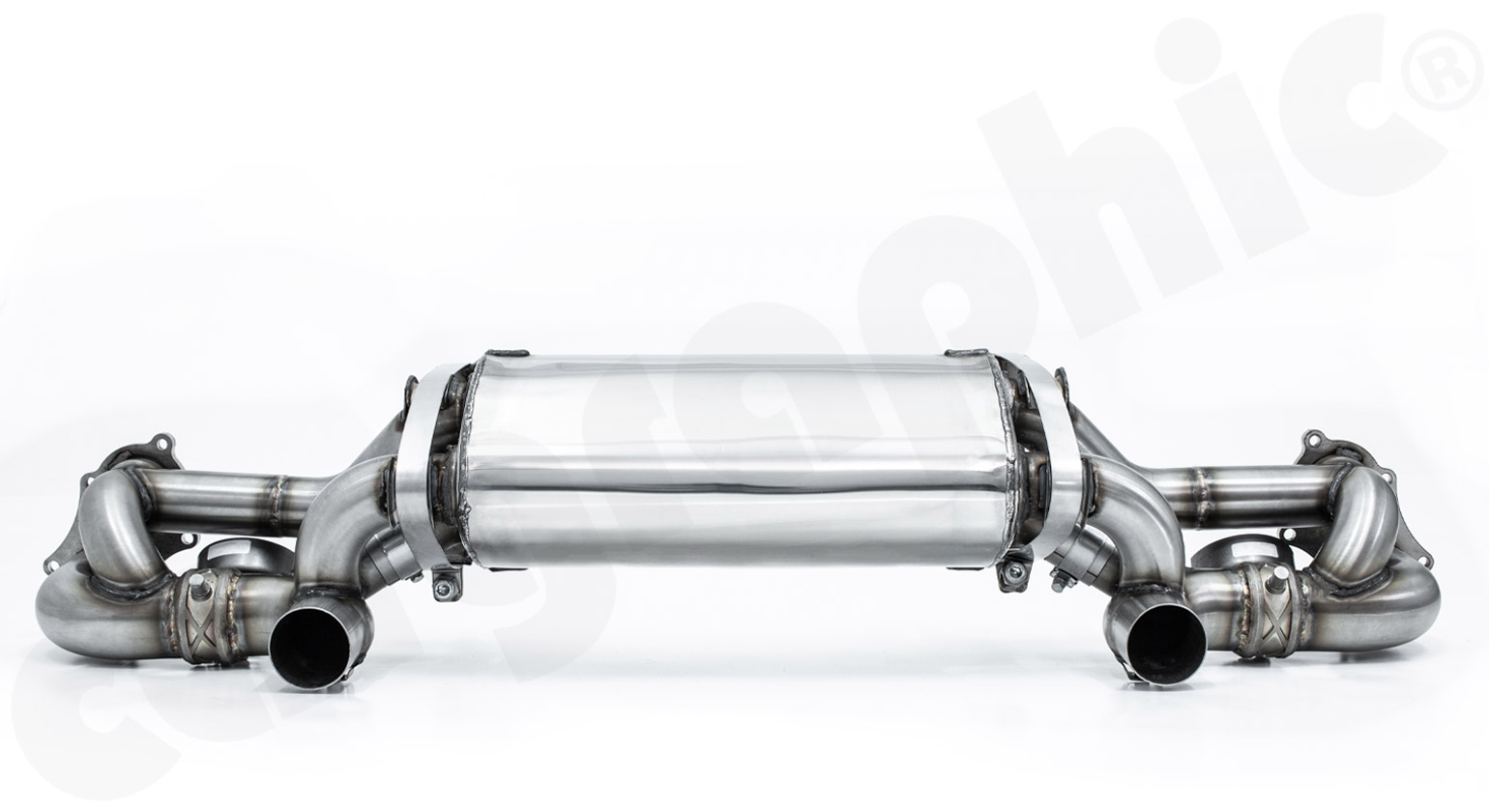

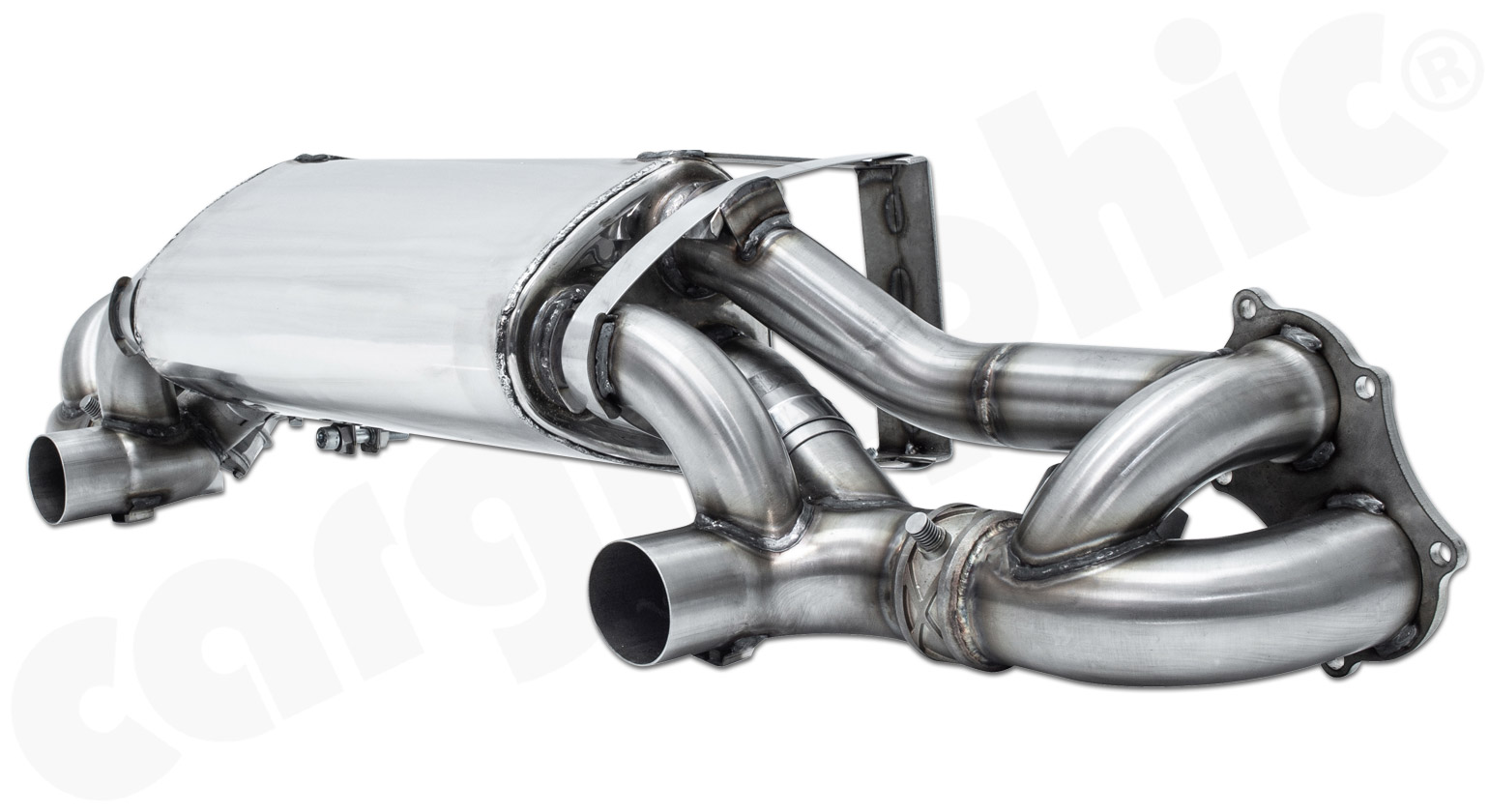

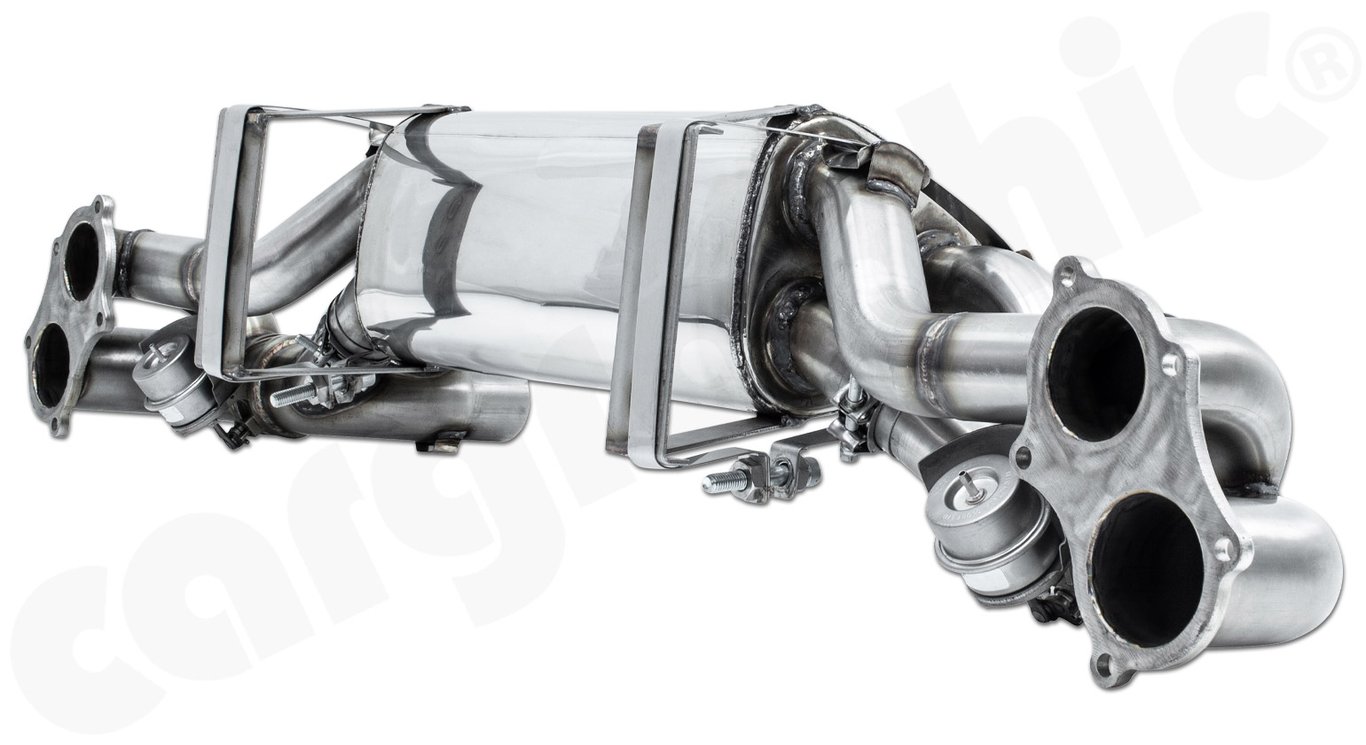

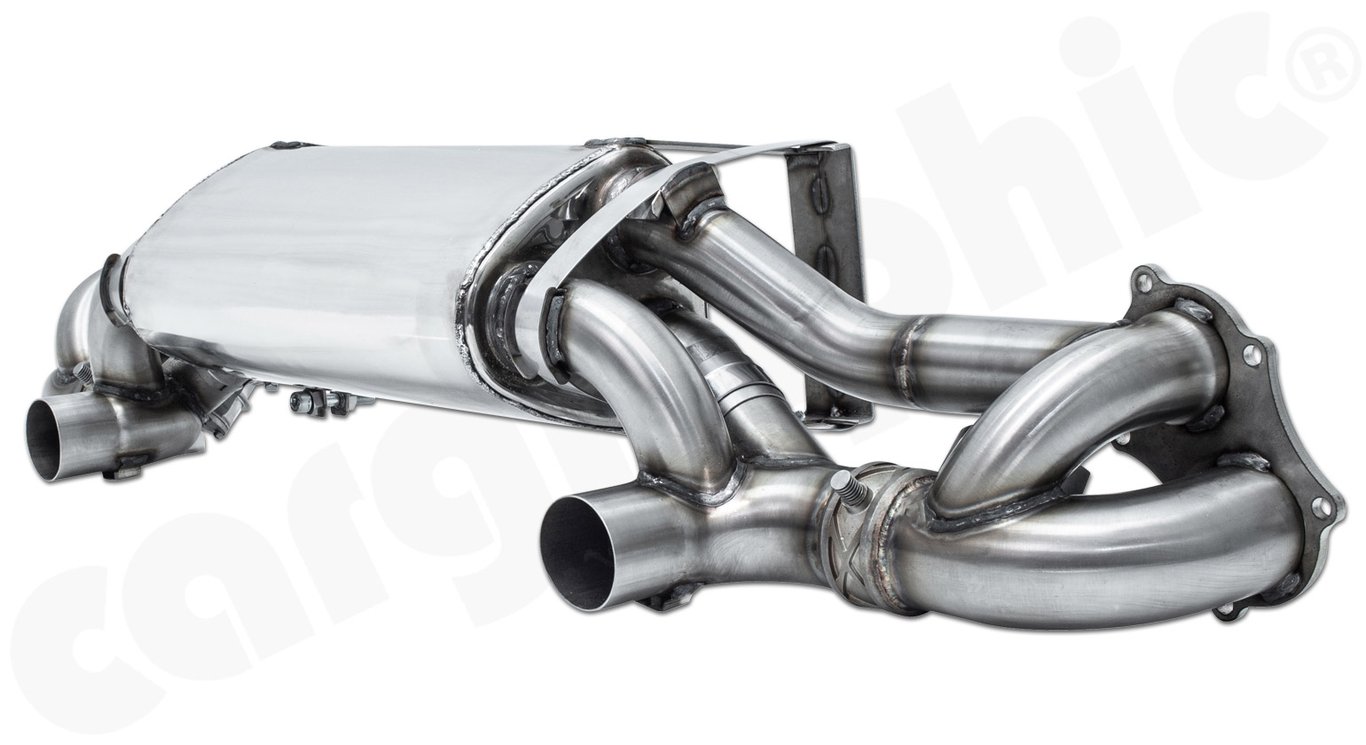

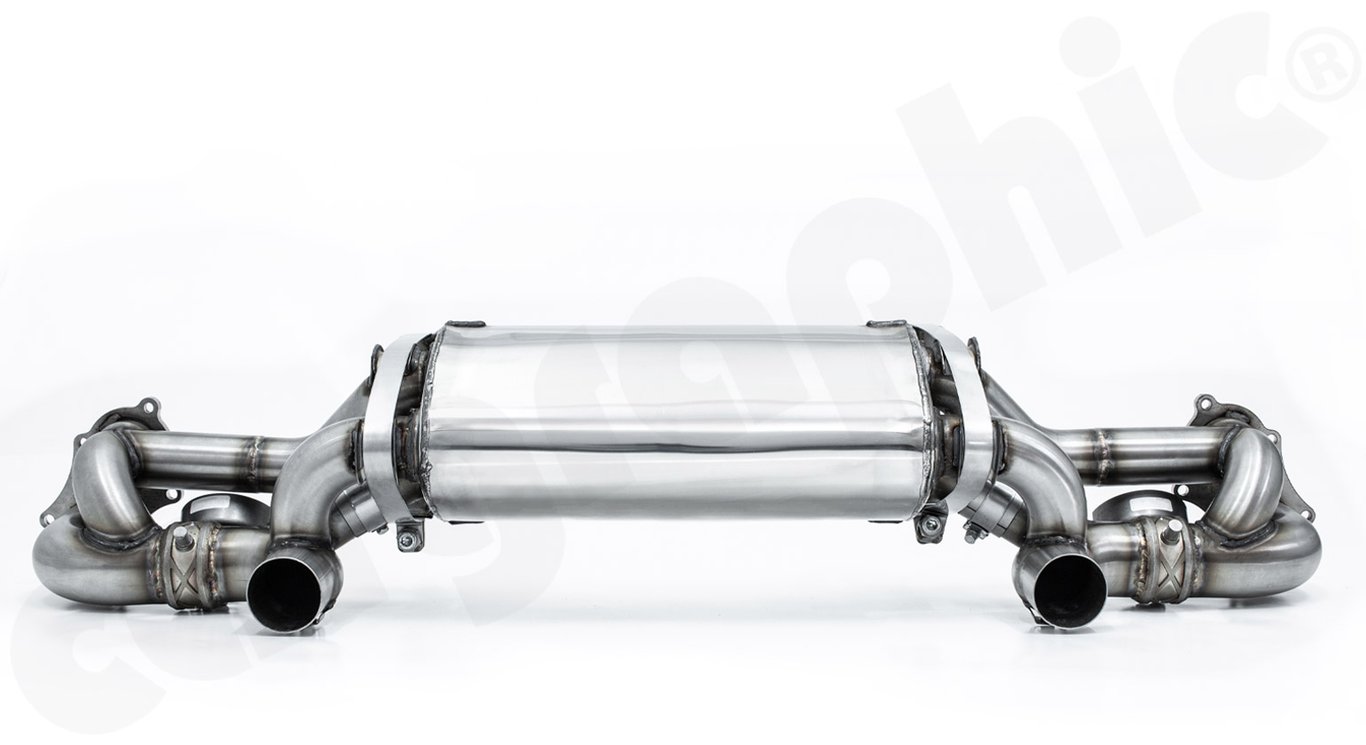

CARGRAPHIC Sport Rear Silencer CLUBSPORT / TOURING with integrated valves SS304L

Contains:

• CARGRAPHIC sport rear silencer with 2 x 2,5" / 63,50mm vacuum controlled exhaust valves PLO ( pressureless open )
• 2-Hole flanges with 2 x 2,5" / 63,50mm pipework for maximum flow and 2 x 2" / 50,80mm Bypass pipework into triangle silencer with big volume and accoustic resonator
• Fitting kit with band straps
• Weight 12,50 kg
• Alternatively fitted with OE / factory tailpipes or optional available CARGRAPHIC tailpipes

SOUND / SUPER SOUND PLUS Export Version

NO DRONE OR RESONATION
achieved by special triangle shape silencer design with accoustic resonator
even in combination with further CARGRAPHIC exhaust components

Fits for:

• Porsche 718 (982) Boxster GTS 4,0l*
• Porsche 718 (982) Boxster Spyder 4,0l*
• Porsche 718 (982) Cayman GTS 4,0l*
• Porsche 718 (982) Cayman GT4 4,0l*

CLUBSPORT / TOURING version - The all-round model with separated exhaust flow:

The TOURING silencer is, due to its large-volume, triangular silencer construction and its special acoustic resonator, by far the "all-rounder" in the CARGRAPHIC product family - developed for stress-free travelling over long distances with pleasant background noise, thanks to the complete absence of annoying droning or resonance noises. Yet the ability to experience, during active driving, the unfiltered, powerful sound of the exhaust stream, with the valves open, directly from the dual-flow OPF outlets into the tailpipes. Unrestricted driving is also possible under full load with permanently closed exhaust valves in conjunction with our 3-mode control.

• SUPER SOUND PLUS: With the exhaust valves open, the loudest, most aggressive version, as both exhaust streams 63.50mm/2.5" and 50.80mm/2" flow non silenced into the tailpipes
• SOUND: With closed exhaust valves 50.80mm / 2" silenced pipe routing through silencer.

Features:

• To be used with CARGRAPHIC or factory / OEM exhaust components
• Absorptive silencer design with CNC mandrel-bent pipework
• Integrated vacuum controlled exhaust valves 2,5" / 63,50mm PLO ( pressureless open )
• Fully made from SS304L lightweight stainless steel
• High performance components, dyno tested
• Reinforced laser-cut brackets
• Reduced backpressure due to freer flowing
• Reduced operating temperature
• Maximized performance
• Improved throttle response, freer revving
• Improved enhanced acoustics with improved low level tone with sharper, crisper and volume increasing sound with revs -no drone, resonation or vibration
• Automatic / OE Mode with valves partially closed: SOUND : Enhanced sporty note over OE / Standard via 2" / 50,80mm bypass pipes ( factory 45mm ) passing through big volume triangle shape silencer and accoustic resonator.
• Sport Mode with valves open: SUPER SOUND PLUS : Aggressive, sharp amplified enhanced note, sharper, crisper and volume increasing freer flowing mode via 2 x 2,5" / 63,50mm > 63,50mm exhaust flow ( factory 55mm ). Maximum unfiltered flow through both dualflow OPF outlets directly unsilenced in tailpipes.
• Model specific tuned sound still in keeping with the Marque
• Weight reduction by 1,40 kg over OE ( 13,90 kg )
