CARGRAPHICHeader System for 981 / Cayman / Boxster / GTS / GT4

Product type: Exhaust
Application:
  • Cayman GT4 - 981
  • Cayman / Boxster - 981
  • Boxster Spyder - 981

Product Description

Not for sale in California. For off-road use only. Takes several weeks for production

Product description:

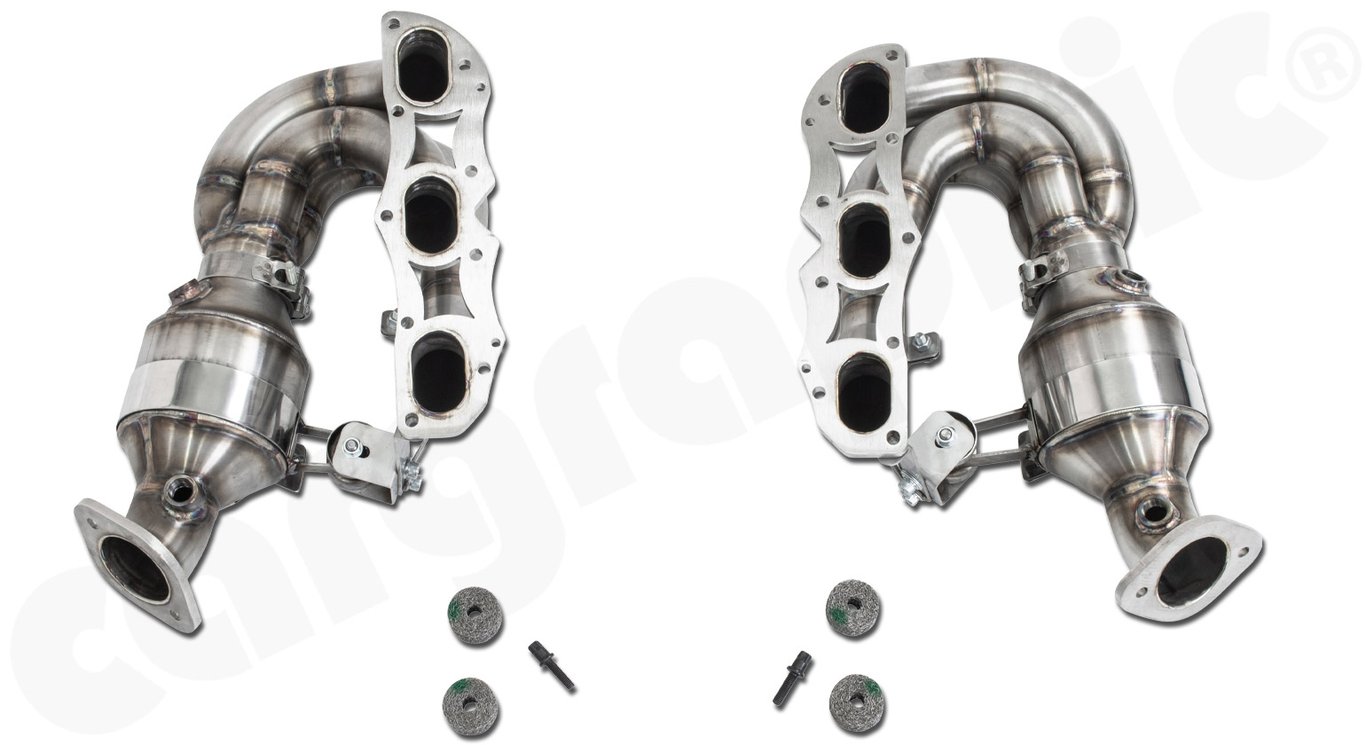

CARGRAPHIC Sport Manifold Set with 100cpsi Catalytic converters SS304L

Consisting of:

  • CARGRAPHIC Sport Manifold Set with 2" / 50,80mm primaries with 2x 100cpsi Ø120mm HD PE MS catalytic converters


Export Version

Fits for:

  • Porsche 981 Boxster / Cayman 2,7l
  • Porsche 981 Boxster S / Cayman S 3,4l
  • Porsche 981 Boxster GTS / Cayman GTS 3,4l
  • Porsche 981 Boxster Spyder 3,8l
  • Porsche 981 Cayman GT4 3,8l / GT4 Clubsport 3,8l

Features:

  • To be used with CARGRAPHIC or factory / OEM exhaust components
  • 2" / 50,80mm equal length longtube primaries merge through a racing style spliced collector with spike
  • Secondary inlet cones with  2x 100cpsi Ø120mm HD Tri-metal catalytic converters
  • Maximum flow due to bigger volume and expansion space, resulting from Ø120mm housings and matching cones
  • Manufactured on CNC pipe bending machine with mandrel support (Mandrel-bent), which enables exhaust pipes with constant diameter to be produced.
  • Fully made from SS304L lightweight stainless steel
  • Reinforced SS304L lightweight stainless steel laser-cut flanges and brackets
  • Reduced backpressure due to freer flowing
  • Reduced operating temperature
  • High performance components, dyno tested
  • Maximized performance and torque addition
  • Improved throttle response, freer revving
  • Improved enhanced acoustics with no drone, resonation or vibration
  • Model specific tuned sound still in keeping with the Marque
  • Weight reduction


PERFORMANCE - Made in Germany
+10KW(14PS) more power and +12Nm additonal torque




Features

CARGRAPHIC Longtube Manifold Set
- with 2" / 50,80mm primary pipe diameter
- with 2x 100 cpsi Ø120mm HD PE MS catalytic converters
- Porsche 981 Boxster / Cayman 2,7l
- Porsche 981 Boxster S / Cayman S 3,4l
- Porsche 981 Boxster GTS / Cayman GTS 3,4l
- Porsche 981 Boxster Spyder 3,8l
- Porsche 981 Cayman GT4 3,8l / GT4 Clubsport 3,8l
